Complete Guide Of One Component Epoxy Adhesive :
What Is One Component Epoxy Adhesive?
One component epoxy adhesives, one-part epoxy adhesives, or epoxy resin adhesives contain all necessary components in a single package. It is a thermosetting polymer that undergoes a cross-linking reaction when exposed to heat or other curing agents. This type of adhesive has a long shelf life and can be stored for extended periods without deteriorating.
Epoxy adhesives are known for their excellent adhesion properties, high strength, and resistance to chemicals and environmental factors. They are widely used in various industries, including automotive, aerospace, construction, and electronics.
One component epoxy adhesives are popular because they are easy to use and require minimal preparation. They do not need to be mixed before application and can be applied directly to the substrate, and this simplifies the bonding process and saves time and money on labor costs.
The curing process of one component epoxy adhesives can be accelerated by applying heat, which initiates the cross-linking reaction. Alternatively, some one component epoxy adhesives contain a curing agent activated by moisture, such as humidity in the air or the substrate. These adhesives can bond with various substrates, including metals, ceramics, plastics, and composites. They are instrumental in applications requiring a high-strength bond, such as structural bonding and assembly.
One component epoxy adhesives are available in various formulations to suit different bonding requirements. Some formulations may contain fillers or modifiers to improve adhesion, flexibility, or other properties, and others may have specific cure times or temperature requirements to suit different application conditions.
One component epoxy adhesives vary from traditional ones but with a slightly different composition and application process. One component epoxy adhesives can also be formulated with other properties, such as high flexibility or low shrinkage, to suit specific applications. They can be used in various environments, including high-temperature and high-humidity conditions.
One Component Epoxy Adhesive Bonding Method
The one component epoxy adhesive bonding method is a popular technique for bonding a wide range of materials. One component epoxy adhesives are pre-mixed and come in a single container, making them easy to use and convenient for bonding applications.
The one-component epoxy adhesive bonding method involves the following steps:
- Surface Preparation: The surfaces to be bonded must be cleaned and free from contaminants such as oil, grease, and dirt. The surfaces must also be dry before applying the adhesive.

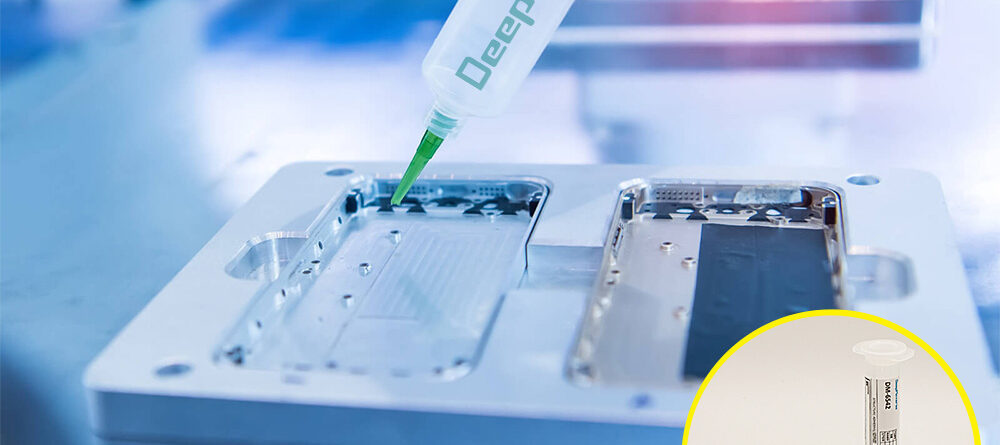

- Apply the Adhesive: The one-component epoxy adhesive is applied to one of the surfaces to be bonded. The amount of adhesive used should be enough to ensure a strong bond. The adhesive can be applied using a brush, roller, or spray.
- Bonding: The two surfaces are brought together and firmly pressed. The pressure helps ensure the adhesive spreads evenly and creates a strong bond. Clamping the surfaces can enhance bond strength until the adhesive has fully cured.
- Curing: The one-component epoxy adhesive cures at room temperature or can be accelerated by applying heat. The curing time depends on the adhesive type and the environment’s temperature.
One component epoxy adhesives offer several benefits, including:
- Easy to use and convenient
- High strength bonding
- Resistance to chemicals, moisture, and heat
- Excellent adhesion to various materials, including metals, plastics, and composites.
One Part Epoxy VS Two-Part Epoxy
A one component epoxy adhesive, also known as a single-component epoxy adhesive, is a type of epoxy adhesive that comes pre-mixed and ready to use. It consists of a single container or cartridge containing both the epoxy resin and the curing agent, which are already blended. When the adhesive is applied, it begins to cure and harden upon exposure to heat, moisture, or other curing conditions, without additional mixing.
On the other hand, a two-component epoxy adhesive, also known as a two-part epoxy adhesive, consists of two separate components, typically referred to as Part A and Part B. Part A contains the epoxy resin, while Part B contains the curing agent or hardener. These two components are typically stored in separate containers or cartridges and must be mixed together in a specific ratio before application. Mixing the epoxy resin and curing agent initiates the curing process, and the adhesive hardens over time.
The main differences between one component and two-component epoxy adhesives are:
Mixing: One component epoxy adhesives are pre-mixed and do not require any additional mixing before application, whereas two-component epoxy adhesives require careful and precise mixing of Part A and Part B in the correct ratio.
- Curing time: One component epoxy adhesives typically have a shorter shelf life and faster curing time than two-component epoxy adhesives. Once opened, one component epoxy adhesives may have a limited working life before they start to cure, while two-component epoxy adhesives can typically be stored for extended periods before mixing and application.
- Flexibility: One component epoxy adhesives are usually more flexible regarding curing conditions, as they can cure with exposure to various curing agents, such as heat, moisture, or UV light. On the other hand, two-component epoxy adhesives may require specific curing conditions, such as a particular temperature, humidity, or UV exposure, for optimal curing.
- Application: One component epoxy adhesives are typically used for applications where ease of use and quick curing time are essential. In contrast, two-component epoxy adhesives are often used for more demanding applications where precise mixing and curing conditions are necessary for achieving maximum bond strength.
What Are The Advantages Of Using A One Component Epoxy Adhesive?
One component epoxy adhesives offer several advantages for various bonding applications. Here are some key benefits:
- Easy to Use: One component epoxy adhesives are pre-mixed and do not require any additional mixing or preparation. They are ready to use, making them convenient and time-saving compared to two-component epoxy adhesives that require proper mixing of two components before application.
- Long Shelf Life: One component epoxy adhesives have a longer shelf life than two. They do not cure or harden until they are exposed to specific conditions, such as heat, moisture, or UV light, which extends their shelf life and allows for longer storage without the risk of curing prematurely.
- Reduced Waste: One component epoxy adhesives eliminate the need for excess material mixing, reducing waste generated during adhesive preparation. This makes them more environmentally friendly and cost-effective as there is less material waste.
- Excellent Adhesion: One component epoxy adhesives offer excellent adhesion to various substrates, including metals, plastics, composites, ceramics, and more. They provide high bond strength, durability, and resistance to various environmental factors such as heat, chemicals, and moisture.
- Versatile Applications: One component epoxy adhesives are universal and can be used for various applications, including automotive, aerospace, electronics, construction, industrial, and many others. They can bond different materials, making them suitable for multiple bonding requirements.
- Cure Control: One component epoxy adhesives allow for precise cure control, as they cure only when exposed to specific conditions, such as heat, moisture, or UV light. This allows for flexibility in bonding applications where curing time or requirements must be controlled.
- Enhanced Productivity: One component epoxy adhesives can improve productivity in manufacturing processes due to their ease of use, reduced waste, and faster curing times. They can help streamline production lines and reduce downtime, improving efficiency and cost savings.
- Chemical Resistance: One component epoxy adhesives offer excellent chemical resistance, making them suitable for bonding applications where exposure to harsh chemicals or solvents is expected. They can maintain their bond strength and integrity even in challenging environments, ensuring long-lasting and reliable bonds.
- Wide Range of Formulations: One component epoxy adhesives are available in a wide range of formulations, allowing for customization based on specific bonding requirements. Formulations can be tailored to provide different properties such as flexibility, toughness, conductivity, or thermal resistance, making them versatile for various applications.
- Reduced Health and Safety Risks: One component epoxy adhesives typically have lower health and safety risks than two-component epoxy adhesives. They do not require the handling and mixing of multiple components, reducing the potential for exposure to harmful chemicals. This can contribute to a safer working environment for operators and reduce the risk of accidents or health hazards.
- Good Gap-Filling Capability: One component epoxy adhesives are known for their excellent gap-filling capability, allowing them to fill voids, gaps, or uneven surfaces between bonded substrates. This helps to distribute stress and improve the overall bond strength, making them suitable for bonding irregular or rough surfaces.
Are One Component Epoxy Adhesives Easy To Apply?
Yes, one component epoxy adhesives are generally easy to apply. They are pre-mixed adhesives that do not require additional mixing with other components, making them simple. One component epoxy adhesives typically come in a ready-to-use form and can be applied directly from the container onto the substrate that needs to be bonded.
Here are some reasons why one component epoxy adhesives are considered easy to apply:
- No mixing required: One component epoxy adhesives are pre-mixed formulations, so you do not need to measure or mix any additional components before application. This eliminates the need for precise measurements or mixing equipment, making the adhesive application process more straightforward and less time-consuming.
- Long shelf life: One component epoxy adhesives typically have a long shelf life, allowing for storage and use over an extended period without frequent replacement. This makes them convenient for various applications and reduces the need for frequent adhesive preparation.

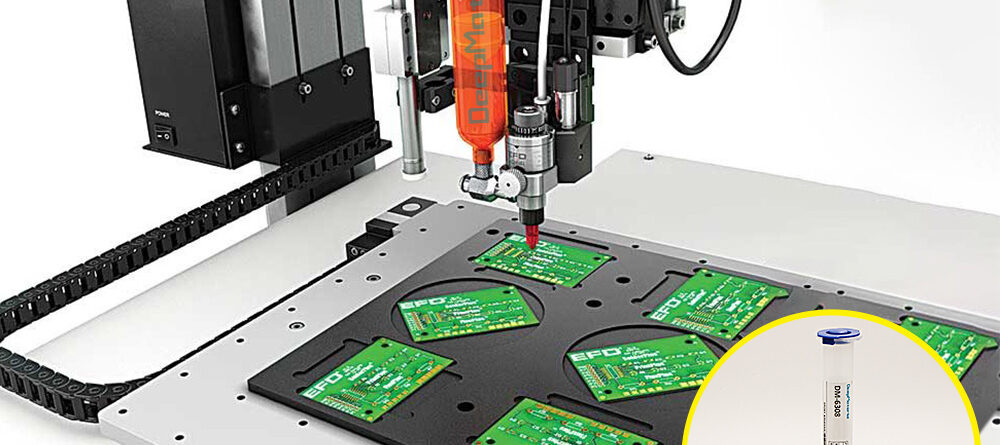

- Easy to dispense: One component epoxy adhesives are usually designed to be easy to administer. They often come in cartridges, syringes, or bottles with applicator tips allowing precise and controlled adhesive dispensing onto the substrate. This helps achieve accurate adhesive coverage and reduces the chances of over-application or wastage.
- Versatile bonding options: One component epoxy adhesives are suitable for bonding various materials, including metals, plastics, composites, ceramics, and more. This versatility makes them convenient for various bonding applications, from automotive and aerospace to electronics and general assembly.
- Curing options: Depending on the application requirements, one component epoxy adhesives can be formulated to cure at different temperatures and speeds. Some one component epoxy adhesives cure at room temperature, while others may require heat or UV light. This provides flexibility in choosing the curing method that best fits the specific application, making the adhesive application process customizable and straightforward.
- Reduced processing time: One component epoxy adhesives can offer faster curing times than other adhesives. This can help reduce the overall processing time of a bonding application, as the adhesive can cure relatively quickly and allow for further processing or handling.
- Minimal waste: Since one component epoxy adhesives come in pre-mixed formulations, there is usually minimal waste during the adhesive application. No leftover mixed adhesive needs to be discarded, as the adhesive can be dispensed in the desired amount directly from the container or applicator tip, reducing material waste and clean-up.
- Easy storage: One component epoxy adhesives are typically easy to store, as they do not require special storage conditions. They can be stored at room temperature, and their long shelf life allows for extended storage without refrigeration or other specific storage requirements.
How Do I Store A One Component Epoxy Adhesive?
Storing a one component epoxy adhesive properly is essential to maintain its quality and prolong its shelf life. Here are some general guidelines for storing a one component epoxy adhesive:
- Follow the manufacturer’s instructions: Always refer to the instructions for the specific epoxy adhesive product used, as different formulations may require additional storage.
- Store in a cool and dry place: One component epoxy adhesives should be stored in a cool, dry, and well-ventilated area, away from direct sunlight, heat sources, and moisture. High temperatures and high humidity can accelerate the curing process or potentially degrade the adhesive properties, reducing effectiveness.
- Seal tightly: Ensure that the container or packaging of the epoxy adhesive is tightly sealed to prevent air or moisture from entering, which can affect its performance.
- Avoid freezing: Some epoxy adhesives may be sensitive to freezing temperatures, which can cause changes in their viscosity or properties. Avoid storing epoxy adhesives in freezing temperatures unless otherwise specified by the manufacturer.
- Keep away from flames or ignition sources: Epoxy adhesives are typically flammable, and it’s essential to store them away from flames, sparks, or other ignition sources to prevent potential fire hazards.
- Store away from children and pets: Keep epoxy adhesives out of reach of children and pets, as they can be hazardous if ingested or come into contact with skin or eyes.
- Only mix different batches or formulations: Avoid mixing different batches or formulations of epoxy adhesives if the manufacturer recommends them, as it can result in inconsistent performance and compromised bond strength.
- Check shelf life: Epoxy adhesives have a limited shelf life, and it’s essential to check the expiration date or shelf life indicated by the manufacturer and use them within the recommended timeframe for optimal performance.
Can A One Component Epoxy Adhesive Be Used For Structural Bonding Applications?
Yes, a one component epoxy adhesive can be used for structural bonding applications, depending on the specific formulation and the requirements of the bonding application. One component epoxy adhesives are typically pre-mixed adhesives that do not require additional mixing before use, making them convenient and easy to apply. Depending on the formulation, they cure when exposed to certain conditions, such as heat, moisture, or UV light.
One component epoxy adhesives can provide excellent bonding performance, including high strength, durability, and resistance to various environmental factors, making them suitable for structural bonding applications. They can bond multiple materials, such as metals, plastics, composites, ceramics, and more, making them versatile for different bonding needs.
However, it’s important to note that not all one component epoxy adhesives are suitable for all structural bonding applications. The specific formulation and properties of the adhesive and the substrate materials being bonded should be considered to ensure proper adhesion and long-term performance. Factors such as surface preparation, curing conditions, and application technique also play a crucial role in the success of the structural bond.
Therefore, it is essential to carefully review and follow the manufacturer’s recommendations and guidelines for the specific one component epoxy adhesive being used and conduct proper testing and evaluation to ensure its suitability for the intended structural bonding application. Consulting with adhesive experts or conducting thorough testing may be necessary to ensure successful and safe structural bonding with a one component epoxy adhesive.
Additionally, it’s essential to consider the load requirements, environmental conditions, and service life expectations of the bonded assembly when using a one component epoxy adhesive for structural bonding. One component epoxy adhesives may have limitations in terms of temperature resistance, chemical resistance, and other factors, which may impact their suitability for specific applications.
Proper surface preparation is critical for optimal bonding performance with one component epoxy adhesives. The substrate surfaces must be clean, dry, and free from contaminants like oil, grease, dust, or rust. Surface treatment methods, such as sanding, degreasing, or priming, may be necessary to ensure adequate bonding.
What Materials Can Be Bonded Using One Component Epoxy Adhesives?
The materials that can be bonded using one component epoxy adhesives include:
Metals: One component epoxy adhesives can bond various metals, including steel, aluminum, brass, copper, and more. They are commonly used for bonding metal parts, components, and assemblies in automotive, aerospace, and industrial applications.
Plastics: One component epoxy adhesives can bond many plastics, including thermosetting plastics (such as epoxy, polyester, and phenolic resins) and thermoplastics (such as PVC, ABS, polycarbonate, and acrylics). They are used in electronics, automotive, and consumer goods for bonding plastic parts, housings, and components.
Composites: One component epoxy adhesives can bond composite materials, such as carbon fiber-reinforced composites, fiberglass-reinforced composites, and other advanced composites used in aerospace, marine, and sporting goods industries.
Wood: One component epoxy adhesives can bond wood and wood products, including hardwoods, softwoods, plywood, particleboard, and MDF (medium-density fiberboard). They are commonly used in woodworking, furniture, and cabinetry applications for bonding wood joints, laminates, and veneers.
Ceramics: One component epoxy adhesives can bond ceramics, such as porcelain, ceramic tiles, and pottery. They are used in ceramic repair, tile installation, and industrial ceramic bonding applications.
Glass: One component epoxy adhesives can bond glass, including soda-lime glass, borosilicate glass, and tempered glass. They are used in applications such as glassware repair, glass bonding in the automotive and aerospace industries, and glass assemblies in electronics.
Rubber and elastomers: One component epoxy adhesives can bond rubber and elastomeric materials, such as natural rubber, synthetic rubber, silicone rubber, and polyurethane elastomers. They are used in sealing, gasketing, and bonding rubber components in automotive, aerospace, and industrial applications.
Foam: One component epoxy adhesives can bond foam materials, including polyurethane foam, polystyrene foam, and other foam types used in packaging, insulation, and automotive applications.
Leather: One component epoxy adhesives can bond leather and leather products, such as shoes, belts, and leather accessories.
Fiberglass: One component epoxy adhesives can bond fiberglass materials used in various applications, such as automotive parts, boats, and recreational vehicles.
Stone and concrete: One component epoxy adhesives can bond stone and concrete materials, such as granite, marble, concrete blocks, and cementitious materials. They are used in construction, architecture, and monument repair applications.
Potting and encapsulation: One component epoxy adhesives can be used for potting and encapsulating electronic components, providing protection against moisture, chemicals, and other environmental factors.
What Is The Maximum Temperature That A One Component Epoxy Adhesive Can Withstand?
The maximum temperature that a one component epoxy adhesive can withstand, also known as its temperature resistance or heat resistance, can vary depending on the specific formulation of the adhesive and the duration of exposure to high temperatures. However, as a general guideline, one component epoxy adhesives can typically withstand temperatures ranging from around 120°C to 200°C (248°F to 392°F) for short durations, and some specialized formulations may have even higher temperature resistance.
It’s important to note that the temperature resistance of a one component epoxy adhesive can be influenced by several factors, including the formulation of the adhesive, the bond line thickness, the curing conditions, and the duration of exposure to high temperatures. In some cases, the adhesive’s temperature resistance may be higher during short-term exposure to high temperatures than prolonged exposure.
Exceeding the recommended temperature resistance of a one component epoxy adhesive can result in reduced performance, including loss of bond strength, reduced flexibility, and potential degradation of the adhesive properties. Therefore, following the manufacturer’s instructions and guidelines for the specific epoxy adhesive product, including the recommended temperature limits for optimal performance, is crucial.
It’s also worth noting that specialized epoxy adhesives in the market are designed for high-temperature applications and can withstand even higher temperatures, such as thermally conductive epoxies used in electronics, aerospace, and automotive applications, which can have temperature resistance exceeding 200°C (392°F). These high-temperature epoxy adhesives are formulated with special additives and resins to enhance thermal stability and performance in extreme temperatures. It’s essential to select the appropriate epoxy adhesive that meets the specific temperature requirements of your application to ensure proper performance and durability.
Is A One Component Epoxy Adhesive Resistant To Chemicals?
The chemical resistance of a one component epoxy adhesive depends on its formulation and the specific chemicals it comes into contact with. In general, epoxy adhesives are known for their excellent chemical resistance compared to other types of bonds, but they may still exhibit varying levels of resistance to different chemicals.
Epoxy adhesives are typically made by blending epoxy resins with curing agents, fillers, and other additives to achieve desired properties such as adhesion, flexibility, and chemical resistance. The specific formulation of a one component epoxy adhesive will determine its chemical resistance characteristics.
Some one component epoxy adhesives are designed to resist various chemicals, including acids, bases, solvents, oils, and fuels. These epoxy adhesives are commonly used in applications where exposure to multiple chemicals is expected, such as automotive, aerospace, and industrial settings.
However, it’s important to note that no adhesive is completely resistant to all chemicals. The effectiveness of an epoxy adhesive’s chemical resistance will depend on factors such as the concentration and temperature of the chemicals, exposure duration, and the epoxy adhesive’s specific formulation. In some cases, prolonged exposure to certain chemicals or high concentrations may cause degradation or failure of the epoxy adhesive.
To determine the suitability of a one component epoxy adhesive for a specific chemical environment, it’s essential to consult the manufacturer’s technical data sheets, which typically provide information on the chemical resistance properties of the adhesive. Additionally, conducting small-scale tests or consulting with a qualified materials engineer or chemist can help to assess the performance of a one component epoxy adhesive in a specific chemical environment.
Can A One Component Epoxy Adhesive Be Sanded Or Machined After Curing?
Yes, one component epoxy adhesives can be sanded or machined after fully cured. However, the specific sanding or machining techniques and the timing of when it can be done will depend on the formulation and healing properties of the epoxy adhesive, as well as the intended application and the manufacturer’s recommendations.
Once a one component epoxy adhesive has fully cured, it typically forms a rugged and durable bond with good mechanical strength. This makes it suitable for sanding or machining operations to achieve desired shapes, smoothness, or other finishing requirements. However, following proper safety precautions, such as using appropriate personal protective equipment (PPE) and working in a well-ventilated area when sanding or machining epoxy adhesives, is essential.
When sanding epoxy adhesives, it’s generally recommended to use fine-grit sandpaper or abrasive pads to avoid excessive material removal and potential damage to the underlying substrate. It’s also important to avoid generating extreme heat during sanding, as it may affect the properties of the epoxy adhesive.
Similarly, when machining epoxy adhesives, it’s essential to use appropriate cutting tools and techniques suitable for the specific formulation of the epoxy adhesive and the machined material. Cutting speeds, feeds, and tool geometry should be selected carefully to prevent excessive heat generation or damage to the epoxy adhesive or the substrate.
It’s essential to refer to the manufacturer’s recommendations and technical data sheets for the one component epoxy adhesive, as they may guide the appropriate sanding or machining techniques, timing, and precautions. Additionally, conducting small-scale tests or consulting with a qualified materials engineer or adhesive expert can help ensure proper sanding or machining of epoxy adhesives after curing.
How Long Can I Expect A One Component Epoxy Adhesive Bond To Last?
The longevity of a one component epoxy adhesive bond depends on various factors, including the specific formulation of the adhesive, the materials being bonded, the environmental conditions the bond is exposed to, and the load or stress applied to the bond. Generally, epoxy adhesives are known for their excellent durability and long-term performance, but the actual lifespan of a bonded joint can vary widely depending on these factors.
When used correctly and under appropriate conditions, a well-bonded joint with a one component epoxy adhesive can last for many years or even decades. Epoxy adhesives are known for their high strength, resistance to chemicals, temperature stability, and resistance to moisture and environmental exposure, which contribute to their long-term performance.
However, it’s important to note that improper application, exposure to extreme conditions, or excessive stress or load can reduce the lifespan of an epoxy adhesive bond. Factors such as exposure to harsh chemicals, extreme temperatures, high humidity, UV radiation, and mechanical stress beyond the adhesive’s designed capabilities can affect the performance and durability of the bond.
To maximize the lifespan of a one component epoxy adhesive bond, following the manufacturer’s instructions for proper surface preparation, adhesive application, and curing is essential. This includes ensuring that the surfaces to be bonded are clean, dry, and adequately roughened or treated as recommended. Additionally, avoiding exposure to conditions outside the adhesive’s recommended temperature, chemical, and environmental limits, and avoiding excessive stress or load on the bonded joint, can help extend the bond’s lifespan.
It’s also worth noting that the manufacturer’s technical data sheets for the specific epoxy adhesive being used may provide information on the expected performance and durability of the adhesive in various conditions. Conducting small-scale tests or consulting with a qualified materials engineer or adhesive expert can also help to assess the expected lifespan of a one component epoxy adhesive bond in a particular application.
Is A One Component Epoxy Adhesive Suitable For Outdoor Applications?
One component epoxy adhesives can be suitable for outdoor applications, depending on their specific formulation and the environmental conditions to which they will be exposed. Some one component epoxy adhesives are designed to have good weather resistance and can withstand exposure to UV radiation, moisture, temperature variations, and other outdoor environmental factors.
When selecting a one component epoxy adhesive for outdoor applications, it’s essential to consider the following factors:
- Weather resistance: Look for epoxy adhesives specifically formulated to resist UV radiation, moisture, and temperature variations. These properties ensure the adhesive’s performance and durability when exposed to outdoor conditions.
- Temperature stability: Consider the temperature range to which the adhesive will be exposed outdoors. Some epoxy adhesives may have limitations regarding their high or low-temperature resistance, and it’s essential to select an adhesive that can withstand the expected temperature extremes.
- Moisture resistance: Outdoor applications often involve exposure to moisture, rain, or humidity, and it’s essential to select an epoxy adhesive with good moisture resistance to prevent degradation or failure of the bond due to water penetration.
- Substrate compatibility: Consider the bonded materials and ensure the epoxy adhesive is compatible. Some epoxy adhesives may have limitations regarding their adhesion to specific substrates commonly used in outdoor applications, such as metals, plastics, or composites.
- Application method: Consider the ease of application of the one component epoxy adhesive in the specific outdoor application. Factors such as cure time, curing conditions, and ease of use can affect the suitability of the adhesive for outdoor use.
- Manufacturer’s recommendations: Follow the manufacturer’s recommendations and technical data sheets for the specific epoxy adhesive being used, as they may provide guidance on the suitability of the adhesive for outdoor applications, including any limitations or precautions to be taken.
- Environmental regulations: Consider any local or regional environmental rules that may affect the selection of the epoxy adhesive for outdoor applications. Some regions may restrict certain types of adhesives or their use in outdoor environments, and it’s essential to comply with these regulations.
- Testing and evaluation: Conduct thorough testing and evaluation of the selected epoxy adhesive in the intended outdoor environment to ensure its performance and durability. This may include conducting accelerated aging tests, exposure to extreme weather conditions, and evaluating the bond strength and durability over time.
- Maintenance and serviceability: Consider the maintenance requirements and serviceability of the bonded assembly in the outdoor environment. Some epoxy adhesives may require periodic reapplication or maintenance to ensure continued performance, which should be factored into the selection process.
- Cost-effectiveness: Consider the cost-effectiveness of the epoxy adhesive for the specific outdoor application, taking into account factors such as the initial cost of the adhesive, its performance and durability, and the potential cost of maintenance or reapplication over time.
Can A One Component Epoxy Adhesive Be Painted Over?
In general, one component epoxy adhesives are not designed to be painted over, as they typically form a durable, smooth, and glossy surface when fully cured. The cured epoxy adhesive may not provide good adhesion for paint, and the paint may not adhere properly to the epoxy surface, resulting in poor paint adhesion and potential coating failure.
However, certain one component epoxy adhesives are specifically formulated to be paintable. These epoxy adhesives are typically labeled as “paintable” or “coatable” and are designed to provide good adhesion for paint or other coatings. They may have special additives or surface characteristics that promote paint adhesion and compatibility.
If you intend to paint over a one component epoxy adhesive, you must check the manufacturer’s instructions and technical data sheets for the specific adhesive being used to determine if it is paintable. The manufacturer may recommend surface preparation, application techniques, and compatible paint systems. Following the manufacturer’s instructions ensures proper paint adhesion and performance.
In some cases, additional surface preparation may be necessary before painting over a one component epoxy adhesive. This can include roughening the epoxy surface, cleaning it thoroughly to remove contaminants, and applying a compatible primer or sealer to promote paint adhesion. It’s essential to consult with the adhesive manufacturer or a qualified paint or coatings expert for guidance on proper surface preparation and paint compatibility.
It’s also worth noting that painting over an epoxy adhesive may change the appearance and characteristics of the bonded joint, and it may affect the overall performance and durability of the adhesive bond. Therefore, thorough evaluation and testing of the paint compatibility with the specific epoxy adhesive in the intended application are recommended to ensure satisfactory results.
What Is The Shelf Life Of A One Component Epoxy Adhesive?
The shelf life of a one component epoxy adhesive can vary depending on its specific formulation, storage conditions, and manufacturer’s recommendations. In general, one component epoxy adhesives have a finite shelf life, and it is essential to use them within their recommended shelf life for optimal performance.
Typically, the shelf life of a one component epoxy adhesive is determined by the manufacturer and is specified on the product label or in the technical data sheets. The shelf life is usually expressed as when the adhesive can be stored in its original, unopened container and maintain its specified properties, such as viscosity, cure time, and strength.
The typical shelf life of one component epoxy adhesives can range from several months to a few years, but it can vary depending on the formulation and storage conditions. Factors that can affect the shelf life of a one component epoxy adhesive include temperature, humidity, air or moisture exposure, and catalysts or other reactive components in the formulation.
It’s essential to store one component epoxy adhesives according to the manufacturer’s recommendations to extend their shelf life. This may include storing them in a cool, dry place, tightly sealing the container after each use, and protecting them from excessive heat, humidity, air, or moisture exposure. Using epoxy adhesives that have exceeded their shelf life can result in reduced performance, longer cure times, and weakened bonds.
It’s also essential to regularly check the shelf life of your epoxy adhesive inventory and rotate stock to ensure that you use adhesives within their recommended shelf life. If an epoxy adhesive has expired or shows signs of deterioration, such as changes in viscosity, color, or smell, it should be discarded and not used for bonding applications.
Is A One Component Epoxy Adhesive Safe To Use?
When used according to the manufacturer’s instructions and proper safety precautions, one component epoxy adhesives are generally considered safe to use. However, as with any chemical product, specific safety considerations should be considered when handling and using one component epoxy adhesives.
Some standard safety precautions to follow when using one component epoxy adhesives include:
- Read and follow the manufacturer’s instructions: It’s important to carefully read and follow the manufacturer’s instructions, including any safety data sheets (SDS) or material safety data sheets (MSDS) provided with the adhesive. These documents contain important information on handling, storage, and safety precautions.
- Use in a well-ventilated area: One component epoxy adhesives may release volatile organic compounds (VOCs) during curing, which can potentially cause respiratory irritation or other health effects. Using the adhesive in a well-ventilated area or using local exhaust ventilation to minimize exposure to fumes is essential. If ventilation is inadequate, use appropriate respiratory protection, such as a properly fitted mask or respirator, as the manufacturer recommends.
- Wear proper personal protective equipment (PPE): Depending on the specific adhesive and application, it may be necessary to wear appropriate PPE, such as gloves, safety goggles or glasses, and protective clothing, to protect your skin, eyes, and apparel from potential contact with the adhesive.
- Avoid skin contact: One component epoxy adhesives can cause skin irritation or sensitization. Avoid prolonged or repeated skin contact with the adhesive. If skin contact occurs, immediately wash the affected area with soap and water. If skin irritation or sensitization develops, seek medical attention.
- Handle with care: Follow proper handling procedures for the adhesive, such as avoiding ingestion or inhalation, and avoid smoking, eating, or drinking while using the adhesive.
- Store properly: Store one component epoxy adhesives, according to the manufacturer’s recommendations, in a cool, dry, and well-ventilated area, away from heat, sparks, flames, or other ignition sources.
- Dispose of properly: Follow proper disposal procedures for new or waste adhesive according to local regulations and guidelines.
Can A One Component Epoxy Adhesive Be Used For Electrical Insulation Applications?
Yes, one component epoxy adhesives can be used for electrical insulation applications. One component epoxy adhesives are known for their excellent electrical insulating properties, including high dielectric strength and low electrical conductivity, which make them suitable for various electrical and electronic applications.

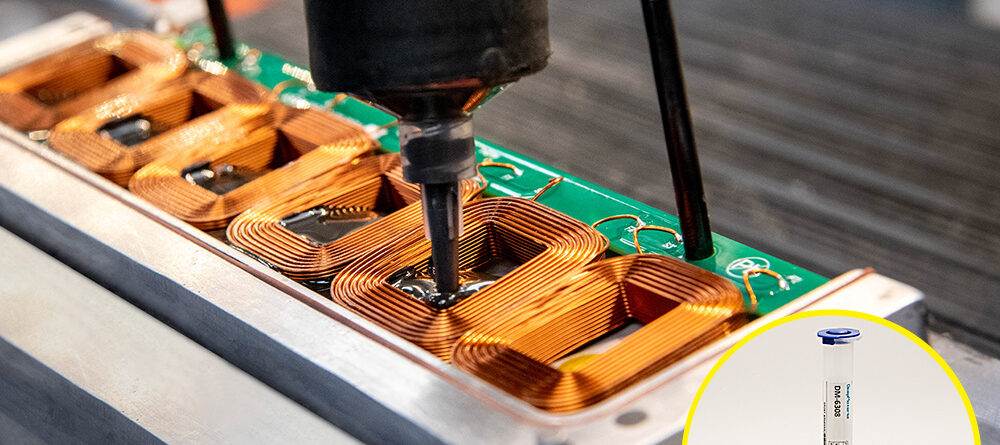

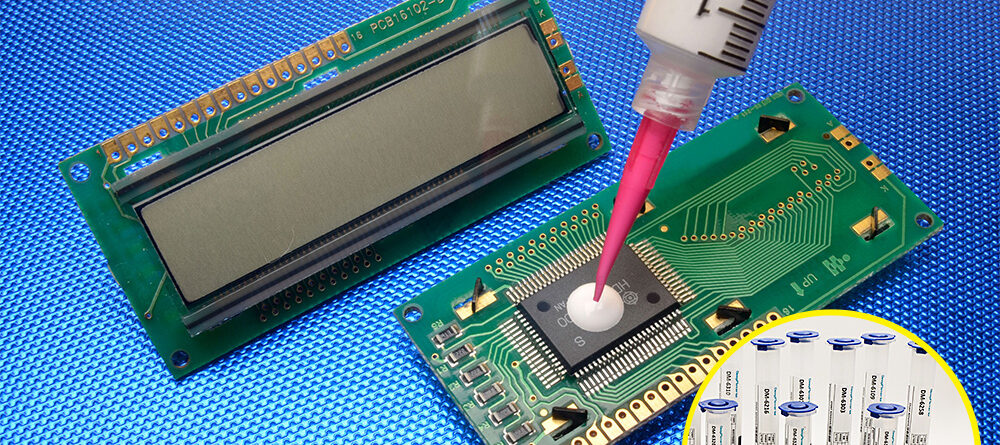

One component epoxy adhesives can bond and encapsulate electrical components, such as motors, transformers, sensors, printed circuit boards (PCBs), and other electronic devices. They can provide a durable, protective barrier that helps prevent moisture ingress, corrosion, and electrical short-circuits.
When using one component epoxy adhesives for electrical insulation applications, following the manufacturer’s recommendations and selecting a bond specifically formulated for electrical insulation purposes is essential. These adhesives typically have unique properties, such as low outgassing, low moisture absorption, and high thermal stability, to ensure reliable electrical insulation performance.
In addition, proper surface preparation, adhesive application, and curing conditions are critical to achieving optimal electrical insulation performance. It’s essential to ensure that the adhesive is applied uniformly, at the appropriate thickness and cured adequately according to the manufacturer’s instructions to achieve maximum electrical insulation properties.
It’s also important to consider any applicable electrical standards, regulations, and guidelines for the specific application, such as UL (Underwriters Laboratories) certification or other industry standards, and to follow proper safety precautions when working with electrical components and adhesives.
How Much One Component Epoxy Adhesive Do I Need For My Application?
The amount of one component epoxy adhesive needed for a particular application depends on several factors, including the size and type of bonded substrates, the bond line thickness desired, and the specific adhesive used. Here are some general guidelines to estimate the amount of adhesive needed:
- Calculate the bond area: Measure the area of the bonded substrates, taking into account any overlap or gaps in the bond line. Multiply the length and width of the bond area to obtain the bond area in square units (e.g., square inches or square centimeters).
- Determine the bond line thickness: The thickness refers to the distance between the bonded substrates when the adhesive is applied. This can vary depending on the application requirements and the adhesive being used. Consult the adhesive manufacturer’s recommendations for the recommended bond line thickness.
- Calculate the adhesive volume: Multiply the bond area by the desired bond line thickness to obtain the adhesive volume needed. Use consistent units for the bond area and bond line thickness (e.g., square inches or square centimeters for both).
- Consider application losses: Account for any potential losses due to spillage, waste, or excess adhesive that may occur during application. The amount of application losses may vary depending on the skill level and technique of the person applying the adhesive and the specific application conditions.
- Check the adhesive packaging: Refer to the manufacturer’s instructions and packaging for information on the coverage or yield of the adhesive per unit of volume or weight. The manufacturer typically provides this information which can vary depending on the adhesive formulation and packaging size.
Can A One Component Epoxy Adhesive Be Used For Underwater Bonding?
One component epoxy adhesives are generally not recommended for underwater bonding applications. Most one component epoxy adhesives are not designed or formulated to provide reliable bonding performance when submerged or exposed to continuous water immersion.
Epoxy adhesives typically cure through a chemical reaction that requires the presence of moisture or oxygen, and water can interfere with this curing process. Water can also weaken the bond strength of epoxy adhesives, as it can penetrate the adhesive layer and cause swelling, softening, or degradation of the adhesive bond. Underwater applications often involve dynamic loads, temperature variations, and other environmental factors that can further challenge the bond performance of one component epoxy adhesives.
If underwater bonding is required, it’s generally recommended to use specialized underwater epoxy adhesives specifically formulated and tested for such applications. These underwater epoxy adhesives are designed to provide superior bonding performance when submerged or exposed to continuous water immersion. They typically have enhanced properties, such as improved water resistance, higher bond strength, and excellent underwater durability.
It’s important to carefully follow the manufacturer’s instructions for the underwater epoxy adhesive, including proper surface preparation, adhesive application, curing conditions, and any other recommendations or guidelines provided. Additionally, adequate safety precautions and considerations for the specific underwater application should be considered.
Are There Any Surface Preparation Requirements Before Using A One Component Epoxy Adhesive?
Yes, surface preparation is critical in achieving a successful bond with a one component epoxy adhesive. Proper surface preparation helps ensure optimal adhesion and bonding performance, as it promotes the removal of contaminants, enhances surface roughness, and promotes chemical bonding between the adhesive and the substrate. Surface preparation requirements may vary depending on the type of substrate being bonded, the specific adhesive being used, and the application requirements. Here are some general surface preparation guidelines for using a one component epoxy adhesive:
- Clean the surface: Remove any dirt, dust, grease, oil, or other contaminants from the substrate surface. Use a suitable cleaning agent, such as a solvent, degreaser, or detergent, as the adhesive manufacturer recommends. Follow proper safety precautions and allow the substrate to dry thoroughly before applying the adhesive.
- Remove loose or weak materials: Remove any loose or weak materials, such as peeling paint, rust, or old adhesive residues, from the substrate surface. Use mechanical methods, such as sanding, scraping, or wire brushing, to ensure a clean and sound substrate surface.
- Roughen the surface: Roughening the substrate surface can enhance mechanical adhesion by increasing the surface area for the adhesive to bond. Use automated methods, such as sanding, grinding, or etching, to roughen the substrate surface if the adhesive manufacturer recommends it. Follow proper safety precautions and ensure the roughened surface is clean and debris-free before applying the adhesive.
- Follow temperature and humidity requirements: Some one component epoxy adhesives may have specific temperature and humidity requirements for surface preparation and adhesive application. Ensure to follow the adhesive manufacturer’s recommendations for temperature and humidity conditions during surface preparation and adhesive application, as these factors can affect the bonding performance of the adhesive.
- Follow cure time recommendations: One component epoxy adhesives typically require a curing or drying time after application before they achieve their full bond strength. Follow the adhesive manufacturer’s recommendations for the cure time, which may vary depending on the adhesive formulation, substrate type, and application conditions. Avoid subjecting the adhesive to stress or load during the cure time, as this can affect the bond performance.
Related Sources About One Component Epoxy Adhesive:
One Component Epoxy Adhesives Glue Manufacturer
Everything You Need to Know About One Component Epoxy Adhesive
Epoxy underfill chip level adhesives
Low temperature curing epoxy adhesive for sensitive devices and circuit protection
Best Top 10 One-Component Epoxy Adhesives Manufacturers
One Part Epoxy Vs Two-Part Epoxy — What Is The Best Epoxy Glue?
Best Non Conductive One Component Epoxy Adhesive Glue For Automotive Plastic to Metal
About One Part Epoxy Adhesive Manufacturer
Deepmaterial is one part epoxy adhesive manufacturer and supplier, manufacturing 1k epoxy adhesive,underfill epoxy,one component epoxy adhesive, single component epoxy adhesive,two component epoxy adhesive,hot melt adhesives glue, uv curing adhesives,high refractive index optical adhesive, magnet bonding adhesives, best top waterproof structural adhesive glue for plastic to metal and glass, electronic adhesives glue for electric motor and micro motors in home appliance.
HIGH QUALITY ASSURANCE
Deepmaterial is determined to become a leader in the one part epoxy industry, quality is our culture!
FACTORY WHOLESALE PRICE
We promise to let customers get the most cost-effective one part epoxy adhesives products
PROFESSIONAL MANUFACTURERS
With electronic one part epoxy adhesive as the core, integrating channels and technologies
RELIABLE SERVICE ASSURANCE
Provide single component epoxy adhesives OEM, ODM, 1 MOQ.Full Set of Certificate
Microencapsulated Self-activating Fire Extinguishing Gel From Self Contained Fire Suppression Material Manufacturer
Microencapsulated Self-activating Fire Extinguishing Gel Coating | Sheet Material | With Power Cord Cables Deepmaterial is self contained fire suppression material manufacturer in china,has developed different forms of self-excited perfluorohexanone fire-extinguishing materials to target the spread of thermal runaway and deflagration control in new energy batteries, including sheets, coatings, potting glue and other excitation fire-extinguishing […]
Epoxy underfill chip level adhesives
This product is a one component heat curing epoxy with good adhesion to a wide range of materials. A classic underfill adhesive with ultra-low viscosity suitable for most underfill applications. The reusable epoxy primer is designed for CSP and BGA applications.
Conductive silver glue for chip packaging and bonding
Product Category: Conductive Silver Adhesive
Conductive silver glue products cured with high conductivity, thermal conductivity, high temperature resistance and other high reliability performance. The product is suitable for high-speed dispensing, dispensing good conformability, glue point does not deform, not collapse, not spread; cured material moisture, heat, high and low temperature resistance. 80 ℃ low temperature fast curing, good electrical conductivity and thermal conductivity.
UV Moisture Dual Curing Adhesive
Acrylic glue non-flowing, UV wet dual-cure encapsulation suitable for local circuit board protection. This product is fluorescent under UV(Black). Mainly used for local protection of WLCSP and BGA on circuit boards. Organic silicone is used to protect printed circuit boards and other sensitive electronic components. It is designed to provide environmental protection. The product is typically used from -53°C to 204°C.
Low temperature curing epoxy adhesive for sensitive devices and circuit protection
This series is a one-component heat-curing epoxy resin for low temperature curing with good adhesion to a wide range of materials in a very short period of time. Typical applications include memory cards, CCD/CMOS program sets. Particularly suitable for thermosensitive components where low curing temperatures are required.
Two-component Epoxy Adhesive
The product cures at room temperature to a transparent, low shrinkage adhesive layer with excellent impact resistance. When fully cured, the epoxy resin is resistant to most chemicals and solvents and has good dimensional stability over a wide temperature range.
PUR structural adhesive
The product is a one-component damp-cured reactive polyurethane hot-melt adhesive. Used after heating for a few minutes until molten, with good initial bond strength after cooling for a few minutes at room temperature. And moderate open time, and excellent elongation, fast assembly, and other advantages. Product moisture chemical reaction curing after 24 hours is 100% content solid, and irreversible.
Epoxy Encapsulant
The product has excellent weather resistance and has good adaptability to natural environment. Excellent electrical insulation performance, can avoid the reaction between components and lines, special water repellent, can prevent components from being affected by moisture and humidity, good heat dissipation ability, can reduce the temperature of electronic components working, and prolong the service life.
The Importance of Camera VCM Voice Coil Motor Glue in Modern Cameras
The Importance of Camera VCM Voice Coil Motor Glue in Modern Cameras As smartphone cameras and digital photography continue to advance, the demand for high-quality images and seamless user experiences has never been higher. One of the critical components enabling this innovation is the camera's Voice Coil Motor (VCM). The...
Mobile Phone Shell Tablet Frame Bonding: A Comprehensive Guide
Mobile Phone Shell Tablet Frame Bonding: A Comprehensive Guide Mobile phones and tablets have become indispensable communication, entertainment, and productivity tools in today's fast-paced digital world. As these devices evolve, so does the technology behind their manufacturing. Co-bonding mobile phone shells and tablet frames is critical in producing these devices....
Understanding Lens Structure Parts Bonding with PUR Glue
Understanding Lens Structure Parts Bonding with PUR Glue The bonding of lens structure parts is crucial in various applications, particularly in optics and manufacturing. One of the most effective adhesives for this purpose is polyurethane (PUR) glue, known for its superior bonding capabilities and flexibility. This article delves into the...
BGA Package Underfill Epoxy: Enhancing Reliability in Electronics
BGA Package Underfill Epoxy: Enhancing Reliability in Electronics In the rapidly evolving world of electronics, Ball Grid Array (BGA) packages play a crucial role in improving the performance of modern devices. BGA technology offers a compact, efficient, and reliable method of connecting chips to printed circuit boards (PCBs). However, as...
Hot Pressing Decorative Panel Bonding: A Comprehensive Guide
Hot Pressing Decorative Panel Bonding: A Comprehensive Guide The aesthetic appeal of surfaces plays a crucial role in interior design and furniture manufacturing. Decorative panels, which add elegance and sophistication, are often used in various applications, from cabinetry to wall coverings. The bonding process, specifically hot pressing, is critical in...
Display Shading Adhesive Glue: Revolutionizing Modern Display Technology
Display Shading Adhesive Glue: Revolutionizing Modern Display Technology In the age of advanced display technologies, from smartphones to televisions and industrial monitors, ensuring clarity, durability, and precision is crucial. Display shading adhesive glue plays a pivotal role in achieving these goals, offering a specialized adhesive solution designed to optimize the...
